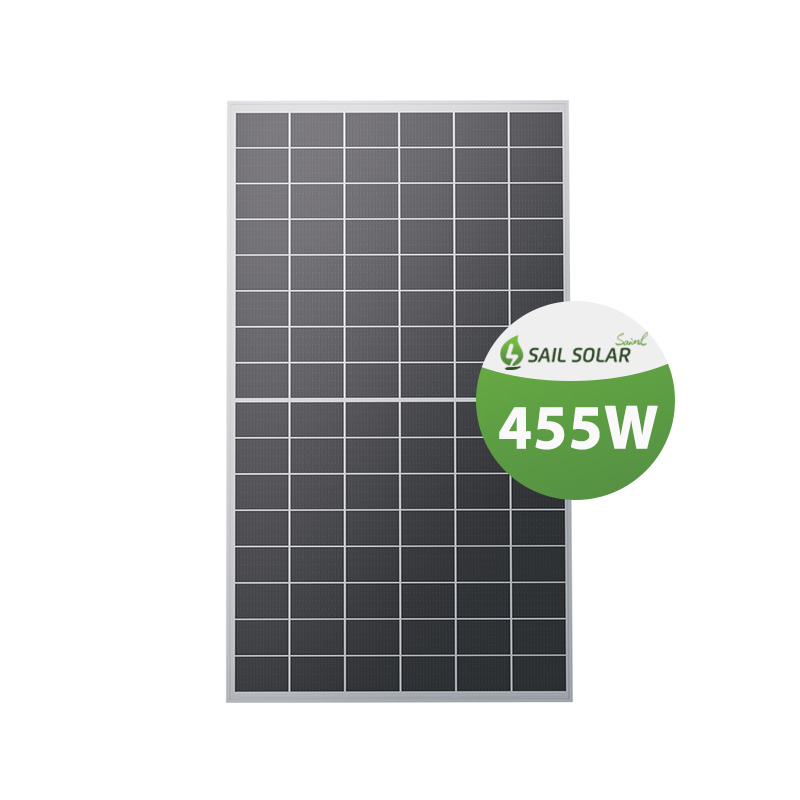

96-cell bifacial dual-glass solar panel with a power output range of 435W to 450W is a high-efficiency photovoltaic module designed for enhanced energy generation.
Marchio :
SAIL SOLARScala di potenza :
435W-455WDimensioni del modulo :
1762 x 1134 x 30mmPeso :
21.0kgBicchiere :
Class ATelaio: :
Anodized aluminium alloy(reinforced high-load optionalScatola di giunzione: :
Ip68 rated (3 by pass diodes)Cavo :
4.0mm2Massimo. Efficienza :
28.46%Carico vento/neve :
Front 5400Pa / Rear 2400PaFoglio posteriore :
WhiteConnettore :
36pcs/pallet; 936pcs/40HQNumero di celle :
96 cells
Optimized Size: The 182mm × 210mm format enhances panel efficiency and power output.
High Energy Conversion Efficiency: Designed to maximize sunlight absorption and conversion into electricity.
Advanced Cell Technology: Compatible with PERC, TOPCon, or HJT technologies for improved performance.
Low Resistance: Reduces energy loss and enhances overall module efficiency.
Versatile Applications: Used in residential, commercial, and utility-scale solar panels.
A 96-cell bifacial dual-glass solar panel with a power output range of 435W to 450W is a high-efficiency photovoltaic module designed for enhanced energy generation. Here are its key features:
High Power Output: Delivers between 435W and 450W, making it suitable for large-scale solar installations.
Bifacial Design: Captures sunlight from both the front and rear sides, increasing overall energy yield.
Dual-Glass Structure: Provides enhanced durability, improved resistance to environmental factors, and extended lifespan.
Efficiency: Typically offers high module efficiency, optimizing performance in various lighting conditions.
96-Cell Configuration: Ensures stable and efficient energy conversion.
Application: Ideal for commercial, industrial, and utility-scale solar projects.
Product Datasheet
| Module ID | SAS435N-96G12R | SAS440N-96G12R | SAS445N-96G12R | SAS450N-96G12R |
| Power | 435 | 440 | 445 | 450 |
| Open Circuit Voltage (Voc) | 34.49V | 34.74V | 34.97V | 35.21V |
| short Circuit Current(Isc/A) | 15.84A | 15.90A | 15.96A | 16.02A |
| Voltage at Maximum power (Vmpp) | 29.43V | 29.65V | 29.87V | 30.08V |
| Current Maximum Power (Impp) | 14.78A | 14.84A | 14.90A | 14.96A |
| Module Efficiency (%) | 21.77% | 22.02% | 22.27% | 22.52% |
| Power Output Tolerance (W) | 0~+5W | |||
| Temperature Coefficient of Isc | +0.045%/°C | |||
| Temperature Coefficient of Voc | -0.250%/°C | |||
| Temperature Coefficient of Pmax | -0.290%/°C | |||
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25°C, Spectra at AM1.5
Test uncertainty for Pmax: ±3%
Certification
SAIL SOSAIL SOALR' s pv panel module have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments etc. We do our best to provide customers with quality products, for the customer's investment and income to provide protection.
